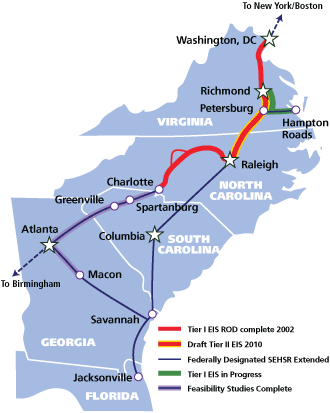

Tonight is the public hearing for the Southeast High Speed Rail (SEHSR) Tier II environmental study. In short, this study breaks up the rail path from downtown Raleigh to Richmond, Virginia into subsections. Most subsections have a few alternate plans and tonight’s event is an opportunity for you to comment on them. The event starts at 5:00pm and anyone will be able to leave feedback or ask questions about any part of the rail line. At 7:00pm, several people will speak about the project and present material to the attendants. Here’s the event info:
SEHSR Tier II DEIS public hearing
5:00 – 7:00 p.m. followed by public hearings at 7:00 p.m.
Raleigh Convention Center – 500 South Salisbury StreetRead more about the event at SEHSR.org
We have already discussed the planned options on the table relating to downtown Raleigh so in preparation for tonight’s hearing, here are two thoughts to add.
Elevated Jones Street
The closing, or “retirement” in NCDOT’s words, of Jones Street at the rail crossing should be the hot topic between downtowners. One option, the CSX corridor option, proposes elevating the street over the tracks. This means that from Boylan to about Harrington, Jones would be raised off the ground. To help paint that picture, imagine the top of the street being as high as the roof of the building 518 West is in. That would mean that the next time Google Street view updates its images, this view would be a good 20 to 25 feet higher.
Let it sink in.
I’ve read the reports and walked the area, this option just does not seem to click with me. Whoever drew up this idea must not live or work in downtown. They had to of visited in a car, surveyed the area in a car, and its possible they sleep in one every night. Even if built, someone driving on Glenwood Avenue would have to turn off Glenwood, turn at Boylan Avenue, and then turn onto Jones Street in order to cross the tracks. There won’t be an on ramp put up to get you from Glenwood to Jones Street.
So the new Jones Street would further ruin the grid-like structure we have near the south end of Glenwood South, making it a little more confusing to navigate by car, pedestrian and bike access would be limited, and the Jones/Glenwood intersection would not be aesthetically pleasing. It may also create more car traffic on Boylan Avenue, which is lined with single family homes and this may lower the desirability for people to live here.
The planners say that throwing Jones Street into the air over the tracks is to maintain connectivity of Glenwood South to the rest of downtown. The CSX plan also closes Harrington and West where the tracks cross so this would help keep the area isolated. In my opinion this is the most invasive option. I wish I had numbers for this but in my opinion, cars mostly run up and down West and Harrington while pedestrians mostly cross the tracks at Jones. The closings and the elevated street would cut off the primary users.
If you can’t go over, go under
One idea that many are not talking about is the idea of burying the train. Immediately people snap back about how expensive it is and that it will probably flood during the 200 hurricanes we get each year. Also, the politics behind getting this done are out of Raleigh’s league. We’ll get to this shortly.
Five Points residents are really interested to see what happens to the Fairview Road train crossing. If the Norfolk-Southern option is chosen, this crossing would be closed. Why hasn’t the option to run the trains under this road been explored?
Looking at a map, the train would roll into town from the north and go under Wake Forest Road, like it does today. They would then turn and head through the Norfolk-Southern rail yards before hitting Fairview Road. This is where the train could ramp underground, go under Fairview, under Wade Avenue, under Peace Street, Johnson, Tucker, North, and Jones Street. It would finally pull into Union Station by Hargett Street at a lower elevation.

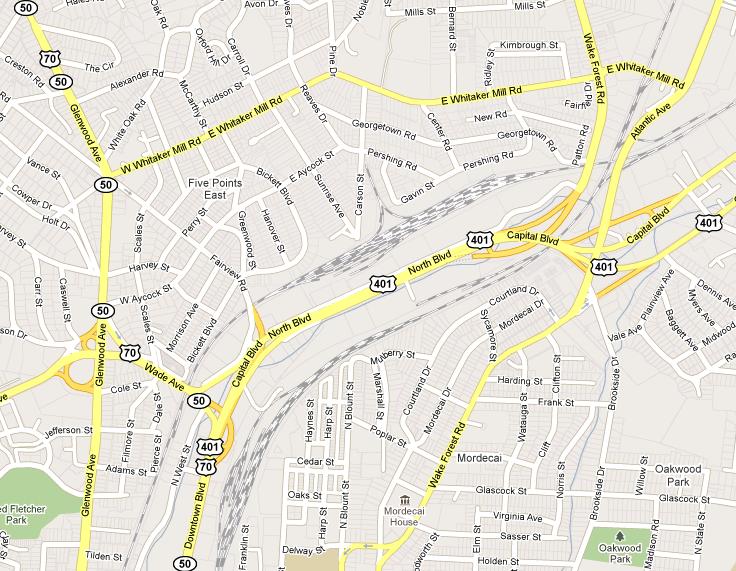

Did you follow that? Here’s a map.
The benefits of this option is that there would be no disruption to the current street layout, except during construction most likely. The train would go into Union Station at a much lower elevation but so what, Union Station hasn’t been designed yet! Also when the train continues west to Cary, it has all that room by NC State to ramp up back to grade level. No street closures, no train noise, no problems.
But with all the pros comes the cons.
The cost of this idea would easily be many times more then anything currently on the table. I would be a little nervous about going with the most expensive option. However, I’m the guy that spends a little extra to buy the quality brand in order to get more in the long run.
One could make the argument that running the train underground and not disrupting the growing entertainment and residential district would pay off in the long run. Union Station may spur lots of development in Glenwood South, maybe much more if streets are not closed and Jones Street is not elevated. Development on existing infrastructure is also great. That’s more tax dollars for the city brought in by visitors on the train.
If obstacles are placed in Glenwood South, the hassle may hurt. A less walkable district could lower the amount of condos being built in the future. A less accessible entertainment district may result in less conventions being booked. A confusing street grid may bring less visitors from around the Triangle, who arrive by car, and these mobile visitors can easily go elsewhere with their thirst, hunger, and money.
The politics behind modifying the Norfolk-Southern lines here, I’m guessing, would be a huge undertaking and those in the know are probably laughing while reading this. It is definitely not in Norfolk-Southern’s interest, just running it in their corridor has them upset, as was the intent of a meeting near Five Points this past Saturday.
Does Raleigh have what it takes to get the high-speed train to run the way it wants or will we approve whatever option has the least resistance?
And why is this “non-disruptive”, as far as I know, option not even on the table? Yes, I know it would be expensive but to not even present it to us, the citizens, is bad a service to us, the ones that walk the streets around here.
Alright, almost done
It’s obvious I have given this a lot of thought and I think it is a much bigger deal then people think. I’m behind all the support for a beefed up train network in this country and would love to see Raleigh as the gateway to the south with the new high-speed rail line.
These transit events, if like others, are great for getting questions answered and just having conversations with the experts about what the plans are and what ideas have been thrown around. I encourage everyone to weigh in with their opinions, not here on the blog but on the SEHSR website. Here is a link to their survey where you can tell them what you think.
Similar Posts:
- High Speed Rail Adds NC5 Alternative, More Massive Maps No Monitor Can Handle | November 10, 2021
- Public Comments For High-Speed Rail | November 10, 2021
- High Speed Rail Noise versus Freight Noise | November 10, 2021
Comments
Comments are disabled here. That's because we're all hanging out on the DTRaleigh Community, an online forum for passionate fans of the Oak City.
I realize that I probably don’t fully understand the logistics of the Jones Street problem, but why can’t they elevate the tracks by ten feet or lower the street by a similar amount? By creating a train bridge over (or transportation tunnel under) Jones Street cars, bikes, and pedestrians could still travel the street without worrying about the train. Also, if the bridge is designed properly it wouldn’t become a resting place for homeless people. The tunnels under the train tracks at NC State work fine. Just make a bigger tunnel for cars and people.
I guess the problem wouldn’t be elevating the tracks at Jones Street but getting the tracks up to and back down from the elevated Jones Street rail bridge like you mentioned, Ashe. I’m not sure of the engineering involved but it is definitely a comment that should be brought up to the SEHSR people.
My $0.02 was to drop Lane Street down as well as Harrington and West. Then the streets would reconnect to the grid and bypass both sets of tracks. Jones Street would be sacrificed, but another option would be opened up just a block north.
The early comments favored keeping Jones Street as a ‘sealed’ grade crossing with quad gates and median barriers. But, I had to take off.
BTW: It was good to see Leo there with the camera!!!
Peace
Grade-separating Jones Street from the CSX and Norfolk Southern tracks would involve reconstruction (along both tracks owned by both companies) about 3,000 feet to both the north and south, which is over a mile. That would be enormously expensive.
They can’t elevate the railroad tracks over Jones Street because the bridge at Hillsborough Street is only two blocks away. They could recess the tracks by building a trench(as recommended by Downtown Living Advocates) but that probably won’t be cost-effective until some future time period.
Let’s retain the Jones Street crossing (and others) as important for pedestrians and the economic vitality of downtown Raleigh.
Lowering the tracks has been done at High Point. In fact, High Point is no longer the high point on the North Carolina Railroad since this was done, but it works well, it seems to me. The bridges over the track are short, therefore no so expensive; there are elevators down to the passenger platforms.
With any major infrastructure project, cost is most often the ultimate discussion point and deciding factor, despite how great any ideas are or long term effects of the surround landscape. Personally I think that building a trench for the railway would be the best option for Downtown Raleigh. Doing would not only maintain existing roadway connections but could open up new ones between glenwood, west, and capital. I imagine that the trench could also improve buffering the sound.
Closing Jones street would destroy connectivity. Unless they’re adding connectivity in the immediate area the option should be floored. NS and CSX need to realize that they need to bend more than 0.0000001 percent here.
The main problem with Jones Street is how it quickly drops off towards West Street. The pieces of Lane Street are much more level with the track grade and Glenwood at that next block which makes more sense when talking about tunnelling.
When I talked to the consultant from Gibson Engineering at her table, she said they had looked at it but nixed it because of business impacts. So, a lowered Lane Street has been considered do-able. Also, when you think about it, connecting Lane over to Glenwood from Dawson and McDowell it seems like a better gateway to the Glenwood South core than having to go Edenton Street, then to Hillsborough and then hang a right up Glenwood.
Peace
The route should be decided by a six-year-old in consultation with an engineer. He/she would just pick the shortest, straightest, and most flat route through Raleigh. Take a look at European trains — they go where they have to go. Europeans are not squeamish about building a tunnel if necessary! The reason the US has few or no trains at the moment is that there are too many citizen advisory committees.
